The Engine The Dealer Wants You To Retire

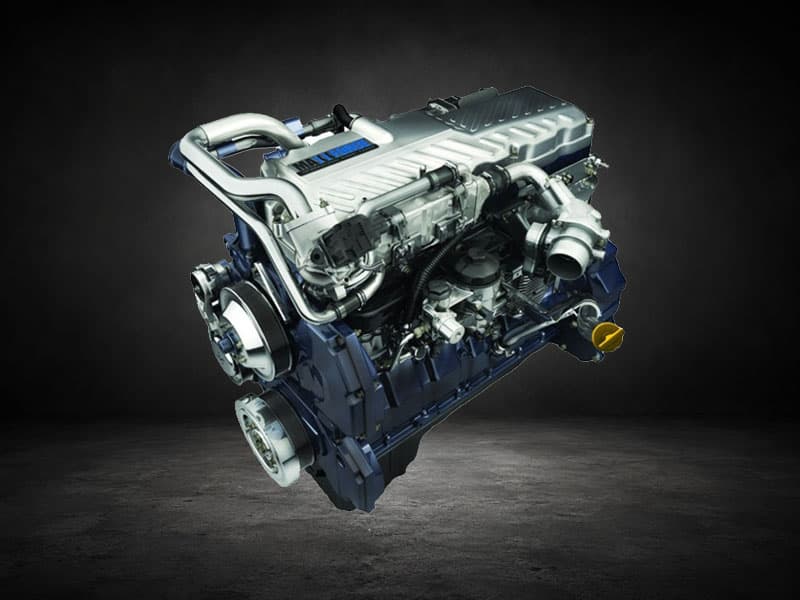

The Navistar MaxxForce 13 is the most controversial heavy diesel built in North America during the EPA 2010 era. Launched in 2010 as Navistar's bet on EGR-only emissions control (no SCR, no DEF, no urea injection), the MaxxForce 13 attempted to meet EPA 2010 NOx limits through massive EGR rates rather than the SCR-plus-DPF approach every other manufacturer adopted. The bet failed. The engines accumulated faults faster than the warranty system could process them. By 2014 Navistar had abandoned the EGR-only architecture and added SCR. By 2015 they had largely walked away from the MaxxForce 13 as a flagship platform.
Today the MaxxForce 13 is the engine fleets keep running because it's already on the books, and the engine dealers won't really work on because Navistar's been steering customers toward the newer A26 platform. We're one of a handful of shops that still actively supports the MaxxForce 13 with calibration work — primarily because there are still tens of thousands of these trucks in service that need the support.
Why MaxxForce 13 Trucks Come To Our Bench
The MaxxForce 13's EGR-heavy architecture put extreme load on its EGR system from day one. The patterns we see are predictable and largely unavoidable on the platform's original calibration:
EGR cooler failures at low mileage. Where most platforms see EGR cooler degradation at 400,000-500,000 miles, MaxxForce 13s often see it at 250,000 miles or earlier in heavy applications. The volume of exhaust gas being recirculated stresses the cooler beyond what the original design anticipated. Coolant intrusion, intake fouling, and eventually catastrophic failures.
DPF clogging from extreme soot loads. The high EGR rates produce more soot in the combustion chamber than typical post-2010 engines. The DPF has to handle that load. Active regen cycles run more frequently, the filter accumulates ash faster, and derate hits earlier than on comparable Cummins or Detroit platforms.
Intake manifold and intercooler fouling. The combination of high EGR rates and the soot-rich exhaust they recirculate means the intake side of these engines accumulates carbon and soot at remarkable rates. Manual cleaning is common maintenance on these platforms. EGR delete eliminates the source of the fouling entirely.
Turbo issues. The MaxxForce 13's twin-turbo (sequential turbo on most builds) suffers from the carbon buildup that comes with the EGR-heavy architecture. Variable geometry vane sticking, actuator faults, and premature turbo failures are more common than on other modern heavy diesels.
What Programming Can Do For The MaxxForce 13
For trucks running export or off-road, combined EGR and DPF delete is the durable fix for the MaxxForce 13's fundamental aftertreatment problems. Removing the EGR system eliminates the source of the intake fouling, the cooler failures, and most of the carbon buildup that drives turbo issues. Removing the DPF eliminates the soot load triggers and the active regen cycles that further stress the system.
The result is a MaxxForce 13 that runs like the platform should have been designed to run — moderate EGR or none at all, clean intake, less soot output, and predictable maintenance. For export markets this is the standard preparation. For off-road applications it extends the useful life of trucks that would otherwise be retired early.
For on-road trucks, recalibration after hardware repair is what we do — clear inducement countdowns after sensor replacement, reset EGR commanded flow tables after cooler service, restore the calibration baseline after dealer flash failures. The aftertreatment hardware stays in place; the ECM logic gets restored to functional baseline.
ECM Identification
MaxxForce 13 trucks run Navistar-specific ECMs accessed through SAE J1939 9-pin diagnostic. The calibration architecture differs from Cummins and Detroit platforms — Navistar's software environment is its own ecosystem. We have calibration libraries for the MaxxForce 13 production run (2010-2014 primarily) covering both the early EGR-only architecture and the later EGR-plus-SCR variants.
Common ECM identification information includes the engine serial number printed on the data plate and the calibration ID accessible through the diagnostic interface. Sending us both, plus the truck VIN, lets us scope the work and quote turnaround accurately.
Service Paths For MaxxForce 13 Programming
Ship-in is the most common path for MaxxForce 13 work. Pull the ECM, ship to Fort Lauderdale, 2-3 day programming turnaround, ship back. Remote programming is possible with Navistar-specific diagnostic hardware. On-site service is available for South Florida fleet customers running multiple International / Navistar trucks with MaxxForce 13 engines.
Quotes return same business day. Tell us the year, the truck (typically International ProStar, LoneStar, or TranStar), and the current fault codes. For fleet customers facing the MaxxForce 13 retirement question — keep them running with calibration work, or trade them in for newer platforms — we can quote either path with honest math.
For owner-operators running MaxxForce 13 trucks, the calibration math usually favors keeping the truck. The engine block, transmission, and chassis hardware on most of these trucks are still good for several hundred thousand more miles. What's failing is specifically the aftertreatment architecture that Navistar bet wrong on. Replacing the truck means losing that hardware investment to depreciation. Recalibrating or deleting addresses the actual problem at a fraction of the cost.
